# Detailed guide
This document helps you to get started using [OHDSI](https://www.ohdsi.org/) Atlas with FinnGen register data.
{% hint style="info" %}
Atlas allows you to create cohorts using a web interface.
{% endhint %}
### Quick start
The Atlas is installed in the FinnGen sandbox.
* Log into the sandbox:
* Select the following menu option:
Applications > FinnGen > Atlas
.png?alt=media)

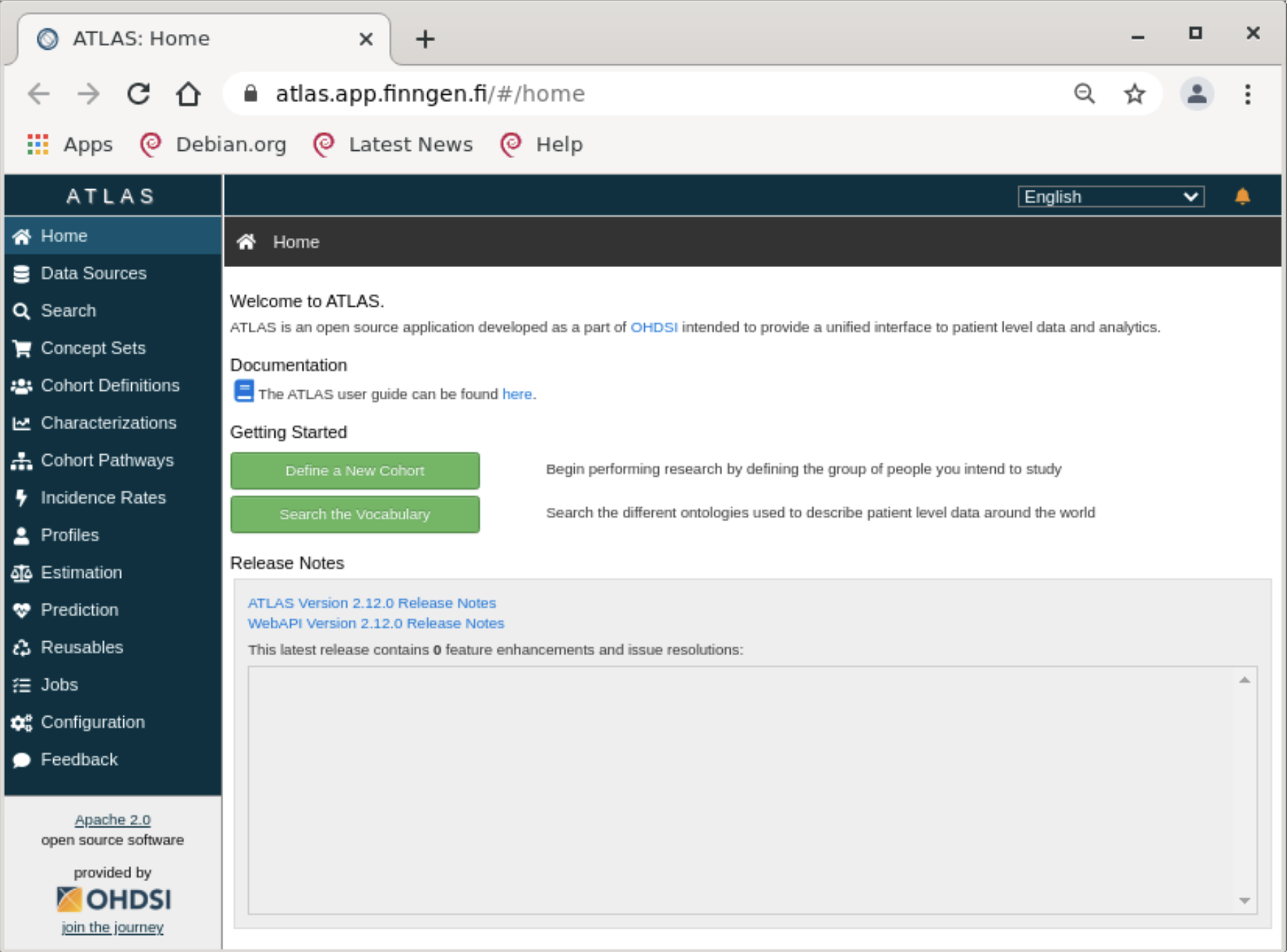

* This opens the Atlas application in a browser window
{% hint style="info" %}
A quick start for defining cohorts using Atlas is available [here.](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas)
{% endhint %}
### Introduction
Atlas allows you to create cohorts using a web interface. Cohorts are groups of individuals who share common characteristics of interest, such as disease classifications, prescription medications or hospital procedures. Cohorts can be used to study associations between these characteristics and other data to reveal which factors increase or decrease the likelihood of developing a certain condition.
You can create cohorts in Atlas using both [standard and non-standard medical codes](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/code-sets-in-atlas). They are loaded into the OMOP-CDM data model used by Atlas from the [service sector data](https://docs.finngen.fi/finngen-data-specifics/red-library-data-individual-level-data/what-phenotype-files-are-available-in-sandbox-1/service-sector-data). The loading process is explained in full detail in [FinnGen ETL to OPOP CDM](https://finngen.github.io/ETL). In addition to mapping non-standard codes to standard codes, the ETL process resolves many register data errors, inconsistencies and anomalies.
### Atlas user interface
#### **Data Sources**
This functionality allows you to create **FinnGen data release-level descriptive summary statistics.**
{% hint style="info" %}
An OHDSI tutorial for viewing Data Sources is available [here](https://www.youtube.com/watch?v=Cueuvq0-xXc\&ab_channel=OHDSI).
{% endhint %}
How to view a report:
* Select the **Data Sources** option in the left menu
* Select the FinnGen data release using the first drop-down menu
* Select the report using the second drop-down menu

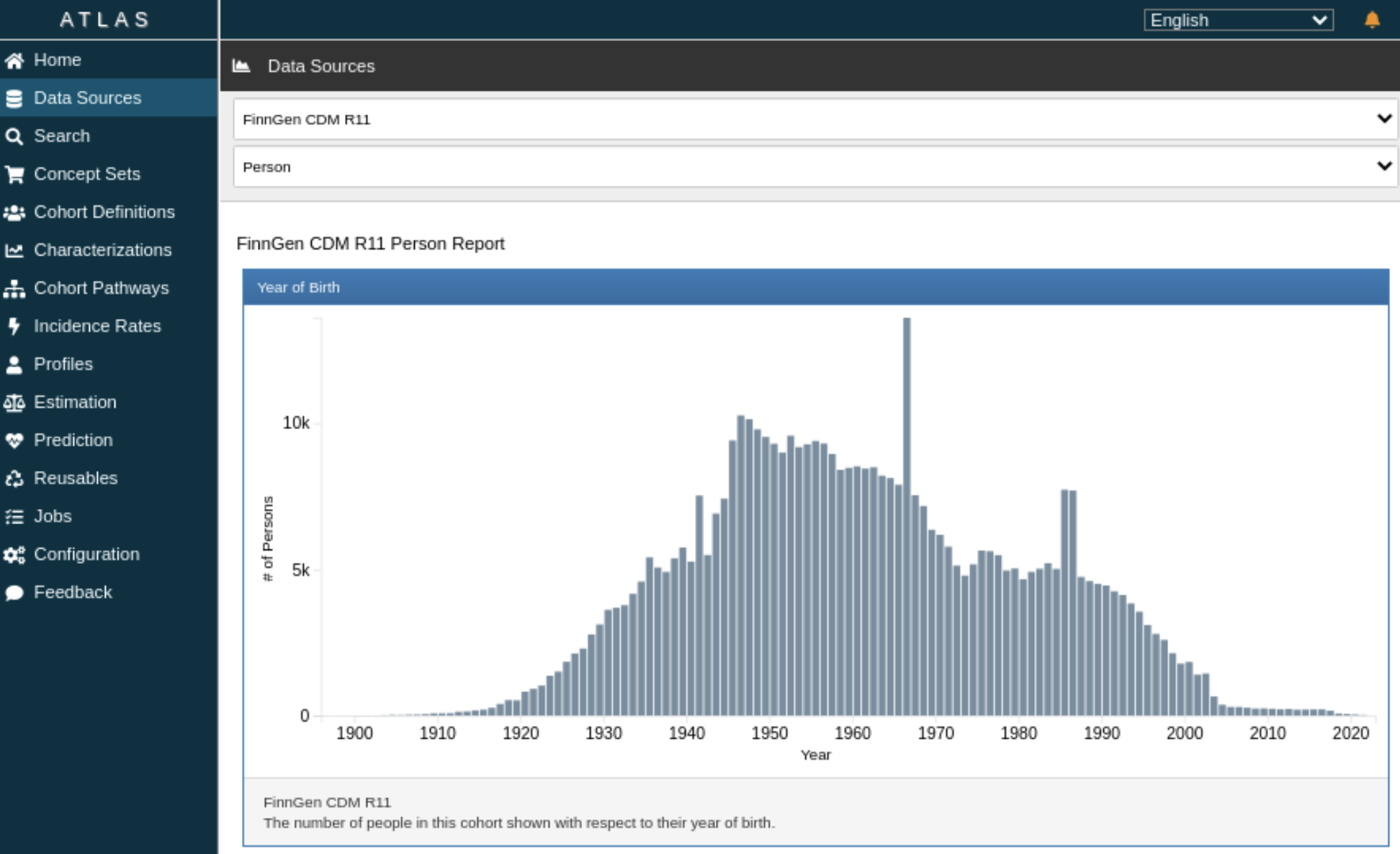

In the example below, we have selected the FinnGen data release 11 and the Person report. This report starts with a distribution of people based on their year of birth:
#### Search
This functionality allows you to search the vocabularies (codes) loaded into the Atlas and to show the number of matching records.
{% hint style="warning" %}
Make sure to select the correct FinnGen data release for both codes and the record counts when using the **Search**.
The **Search** is made against the vocabularies (codes) from one FinnGen data release while the number of matching records is shown for a potentially different FinnGen data release. These FinnGen data releases can be defined on the **Configuration** page using the **Vocabulary Version** and **Record Counts** columns. The FinnGen data release against which the codes are searched can also be defined on the **Search** page using the **View record count** drop-down list.
{% endhint %}
{% hint style="info" %}
An OHDSI tutorial for using Search is available [here](https://www.youtube.com/watch?v=NI8urevLuqY).
{% endhint %}
How to search codes:
* Select the **Search** option in the left menu
* Type in the search term in the text box at the top
* Click the button
{% hint style="warning" %}
You can change the FinnGen data release that is being searched against using the **View record counts** drop-down list. However, this does not affect the FinnGen data release from where the codes are selected for the search. This FinnGen data release is defined on the **Configuration** page.
{% endhint %}

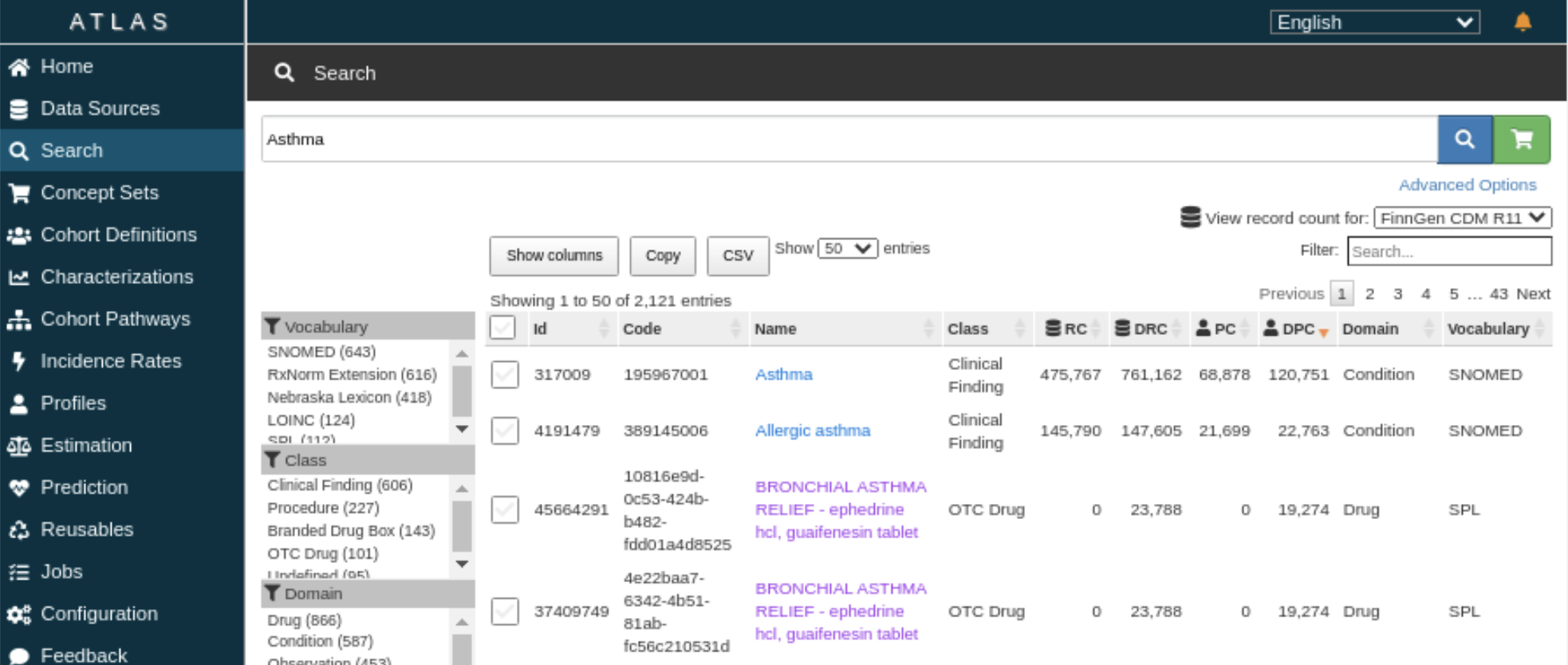

In the above example, we used the 'Asthma' search term. Standard, non-standard and classification codes are shown in different colours, for example, the standard codes are in blue. More information about these codes is available [here](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/code-sets-in-atlas).
#### Concept Sets
{% hint style="info" %}
The cohort definition starts by creating a **Concept Set.** A Concept Set contains a set of medical codes that are used when defining a cohort in **Cohort Definitions**. A cohort is defined using one or more Concept Sets. For example, one Concept Set could contain clinical diagnostics codes while another could contain administered drugs.
{% endhint %}
{% hint style="info" %}
OHDSI has tutorials for [viewing](https://www.youtube.com/watch?v=mfjxNwn3KkM\&ab_channel=OHDSI) and [creating](https://www.youtube.com/watch?v=2_JsAAFExMU) Concept Sets.
{% endhint %}

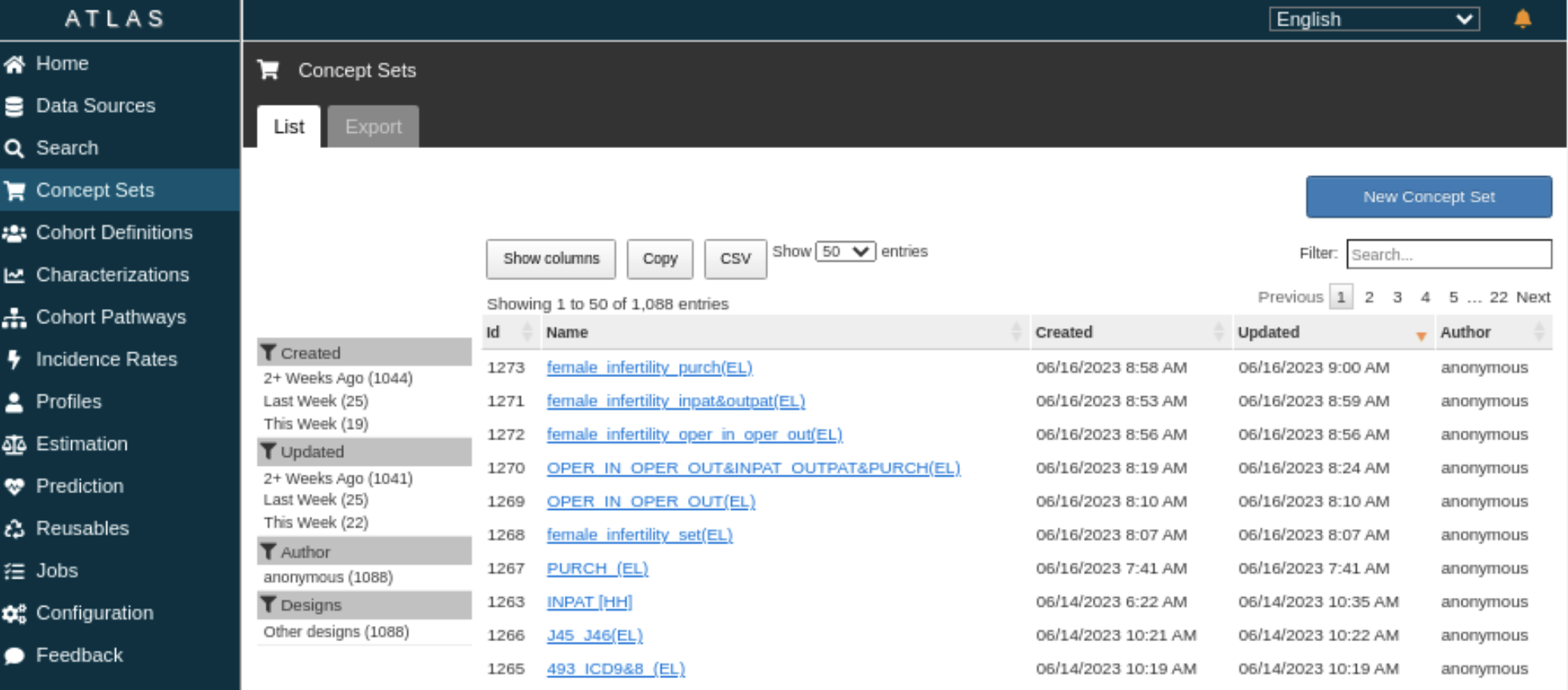

How to view Concept Sets:
* Select the **Concept Sets** option in the left menu
* Click the **Name** to see which concepts (codes)are included in the Concept Set.
How to create Concept Sets:
* Click the button on the right.
More information about viewing and creating Concept Sets is available [here](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas/concept-sets).
#### Cohort Definitions
{% hint style="info" %}
A cohort is defined in **Cohort Definitions** using one or more **Concept Sets**. For example, one Concept Set could contain clinical diagnostics codes while another could contain administered drugs. Cohorts may be created in Cohort Definitions by defining additional criteria such as age inclusion criteria or cohort entry and exit criteria.
{% endhint %}
{% hint style="warning" %}
In Atlas, people are always included in the cohort for a duration. By default, they are included for the period they belong to a Concept Set.
{% endhint %}
{% hint style="info" %}
OHDSI has a tutorial for [creating](https://www.youtube.com/watch?v=JQFGedOaNiw\&list=PLpzbqK7kvfeUXjgnpNMFoff3PDOwv61lZ) a Cohort Definition.
{% endhint %}
How to view Cohort Definitions:
* Select the **Cohort Definitions** option in the left menu
* Click the **Name** to see more information about the Cohort Definition
How to create Cohort Definitions:
* Click the button on the right
More information about viewing and creating Cohort Definitions is available [here](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas/cohort-definitions).
#### Characterizations
This functionality allows you to create **cohort-level descriptive summary statistics.**
{% hint style="info" %}
OHDSI has a [tutorial](https://www.youtube.com/watch?v=FU8DqF1mcDQ) on Characterizations.
{% endhint %}

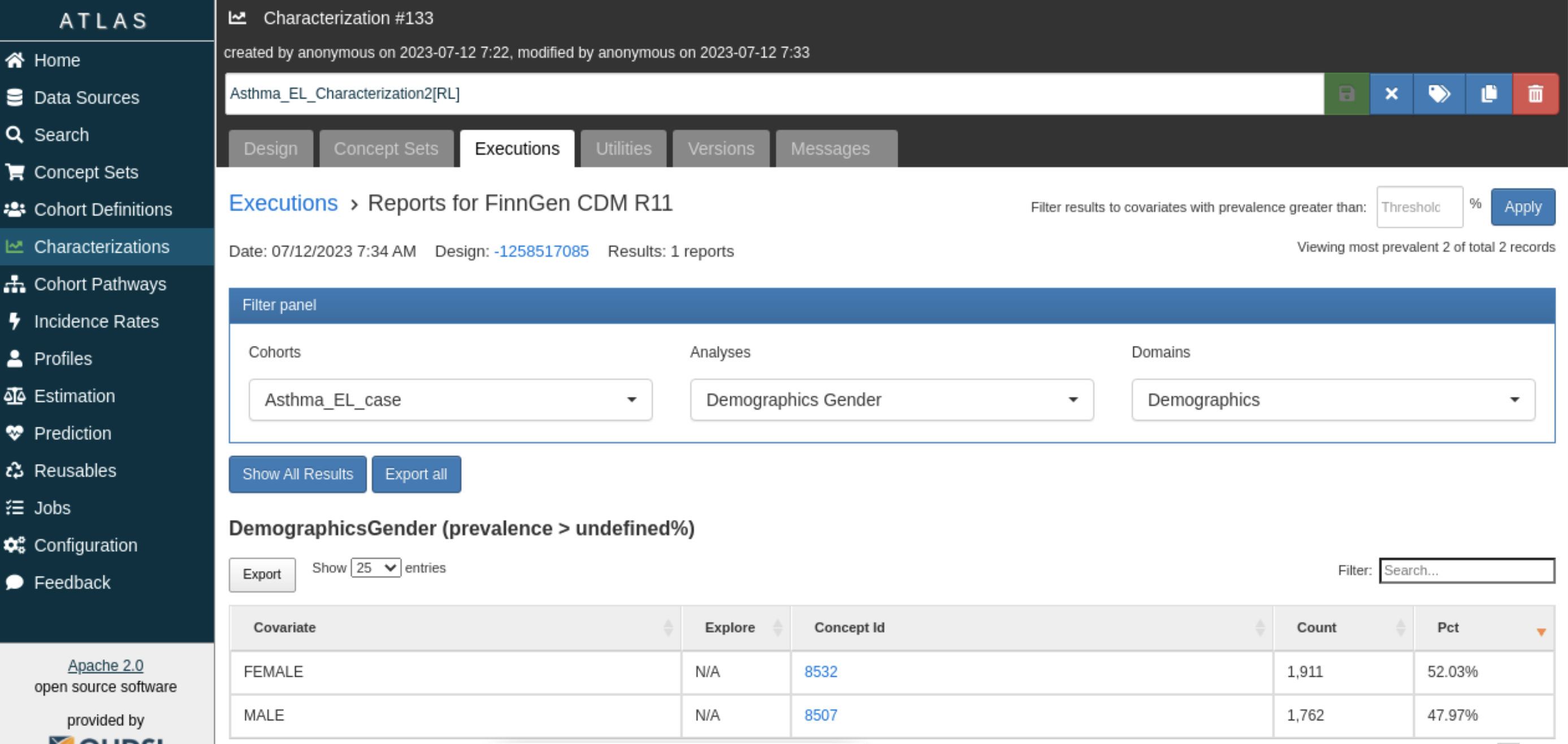

In the example below, we have created gender summary statistics in FinnGen data release 11:
More information about Characterizations is available [here](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/cohort-characterizations-in-atlas).
#### Cohort Pathways
This functionality helps you to understand the sequence of events within a cohort.
{% hint style="info" %}
OHDSI has a tutorial on Cohort Pathways [here](https://www.youtube.com/watch?v=rdniIztguys).
{% endhint %}
More information about Cohort Pathways is available [here](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/cohort-pathways).
#### Incidence Rates
This functionality allows you to estimate incidence rates.
{% hint style="info" %}
OHDSI has a [tutorial](https://www.youtube.com/watch?v=sl1tkcNT17U) on Incidence Rates.
{% endhint %}
#### **Configuration**
{% hint style="warning" %}
**Atlas contains several FinnGen data releases**. The **Search** is made against the vocabularies (codes) from one FinnGen data release while the number of matching records is shown for a potentially different FinnGen data release. These FinnGen data releases can be defined on the **Configuration** page using the **Vocabulary Version** and **Record Counts** columns.
Please follow [these instructions](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas/selecting-configuration-in-atlas) to define the FinnGen data release for **Search** and for defining **Concept Sets** using the **Search** functionality\*\*.\*\*
{% endhint %}

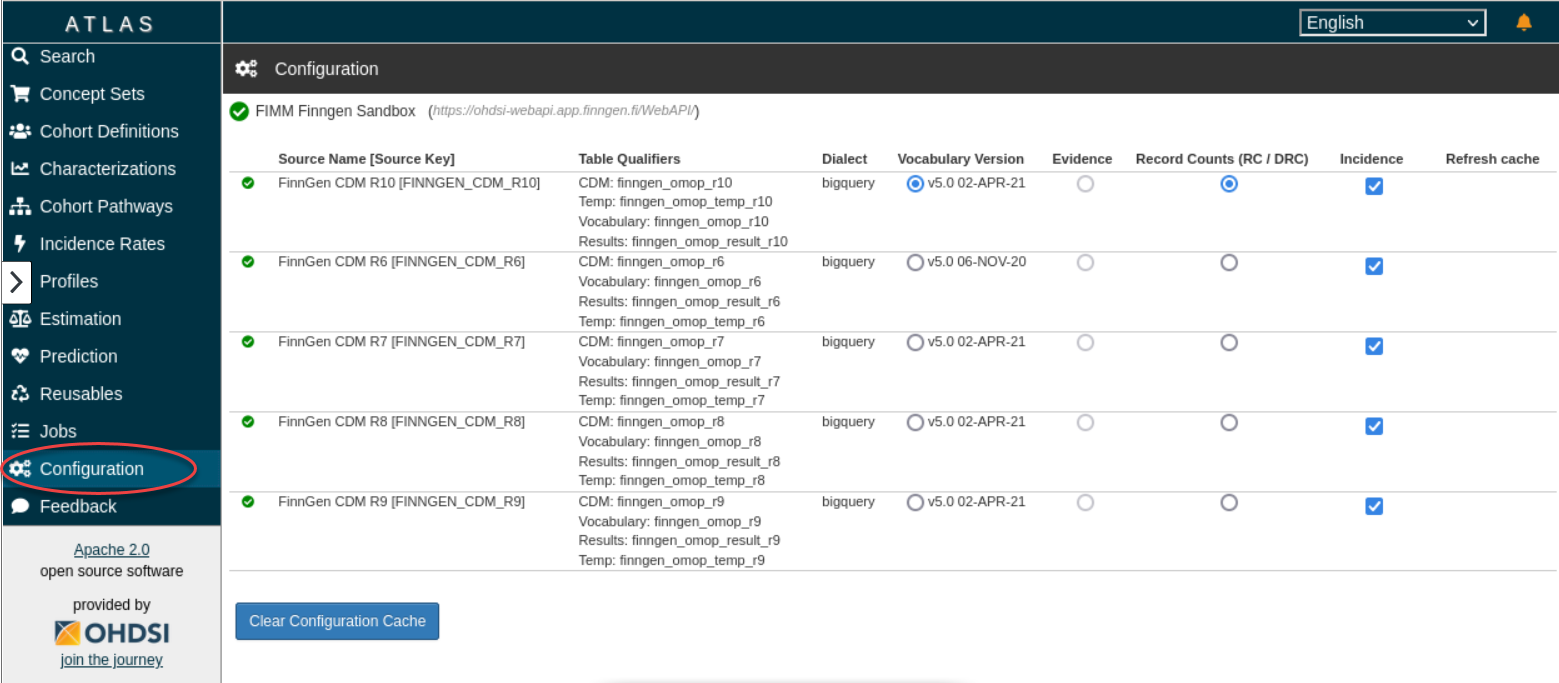

In the example below, we have selected the FinnGen data release 10 in both **Vocabulary Version** and **Record Counts** columns:
The FinnGen data release is also selected when generating:
* Cohort Definitions
* Characterisations
* Cohort Pathways
* Incidence Rates
{% hint style="info" %}
Because codes may change between FInnGen data releases, it is safest to use the same FinnGen data release when defining **Concept Sets** and when generating **Cohort Definitions** or **Characterisations**.
{% endhint %}
### Atlas data model
You can define better cohorts if you understand the different characteristics of FinnGen [register data sources](https://docs.finngen.fi/finngen-data-specifics/red-library-data-individual-level-data/what-phenotype-files-are-available-in-sandbox-1/detailed-longitudinal-data) and how the data is made available in the [Atlas data model](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/atlas-data-model).
For example, Finngen does not have bone density measurements. However, you can use bisphosphonate treatments as a proxy for bone mineral density. The reason for this is that the treatment reimbursement requires a bone mineral density test and FinnGen makes the reimbursement data available from the Kela drug reimbursement register.
### Topics in the section
* [Atlas data model](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/atlas-data-model)
* [Standard and non-standard codes](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/code-sets-in-atlas)
* [How to define a cohort in Atlas](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas)
* [How to define a simple ICD case-control cohort in Atlas](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/how-to-define-a-cohort-in-atlas/how-to-define-a-simple-icd-case-control-cohort-in-atlas)
* [Downstream analyses after the Atlas cohorts are created](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/downstream-analyses-after-the-atlas-cohorts-are-created)
* [Data Release Summary Statistics in Atlas](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/atlas-data-sources)
* [Cohort Summary Statistics in Atlas](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/cohort-characterizations-in-atlas)
* [Cohort Pathways](https://docs.finngen.fi/working-in-the-sandbox/which-tools-are-available/atlas/detailed-guide/cohort-pathways)
### Further information
* [Youtube channel offered by OHDSI with Atlas tutorials](https://www.youtube.com/playlist?list=PLpzbqK7kvfeUXjgnpNMFoff3PDOwv61lZ)
